Types of Fire Alarm

Suddenly, a loud alarm raises its voice above the noise of the crowded building. In the case of a fire, that sound might be your only hope. However, did you know that different fire alarms are made to fit various needs and environments? Knowing these differences may be the difference between calamity and safety. Since their invention, fire alarms have gone through a significant evolution. The desire to speed up response times and lower false alarms led to the creation of these systems, ranging from basic bells to complex ones. Today’s fire alarm systems are more effective and efficient than ever thanks to technological improvements and a better understanding of fire dynamics.

We will look at fire alarms, from simple smoke detectors to expensive addressable systems. We can better appreciate each type’s part in emergency response and fire safety if we know its differences and functions. We will first review the fundamentals of fire alarm systems, their main parts, and how they work. After that, we’ll review the many kinds of fire alarms and group them according to their signaling devices, system design, and detecting methods. Lastly, we will go over the importance of following the right installation, maintenance, and testing protocols to guarantee the dependability and efficiency of these life-saving devices.

Ensuring that every segment makes sense and advances knowledge about fire alarm systems is essential. We’ll also check for accuracy, coherence, and clarity to ensure readers can comprehend the importance of selecting the best fire alarm system for what they need.

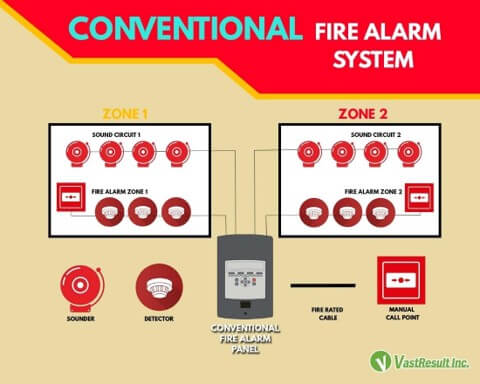

Conventional Fire Alarm System

In a conventional fire alarm system, the control panel connects to each device via individual wires, which are then organized into zones based on location. When a device activates, the system detects the exact zone where the activation happened. This information can be shown on both the fire panel and the annunciator. For example, if a structure has four levels, each labeled as a different zone, authorities can determine which floor was damaged by the fire by referring to the activated zone.

ADVANTAGES:

1. Affordable: Conventional systems are cheaper upfront, making them great for small places or tight budgets.
2. Easy to use: They’re simple to set up and understand, making them good for places without fancy setups.
3. Easy to set up but effective: They do the job without any fuss, and it’s easy to teach people how to react if there’s an alarm.

DISADVANTAGES:

1. Environmental Sensitivity: Dust, humidity, and temperature variations can all impact conventional systems, resulting in false alarms or lower reliability.
2. May cause False alarms: Sometimes they go off when there’s no real danger, which can be annoying and make people ignore alarms.
3. Single Point of Failure: A problem with one component of the system might impact the entire system, possibly leading to missed alerts or false activation.

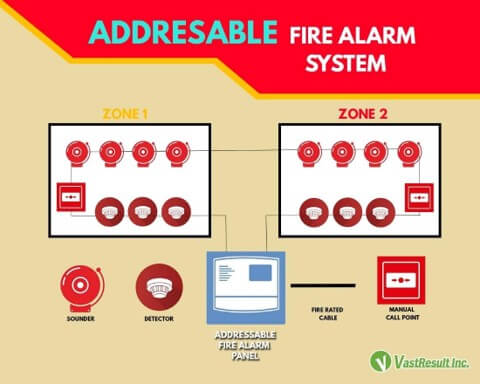

Addressable Fire Alarm System

In an addressable fire alarm system, each device is assigned a unique address, enabling precise identification of activated devices and communication of their location to emergency responders. All system components are linked to the fire alarm panel through a single-wire loop, ensuring continued communication even if one end of the loop is damaged. Addressable systems offer extensive customization and are frequently installed in large buildings or complexes. Such systems prove especially beneficial for facilities with multiple levels of sections, as they enable responders to quickly locate activated devices, thereby reducing response time.

ADVANTAGES:

1. Precision: Addressable systems quickly show exactly where a problem is, so firefighters can respond faster and false alarms are reduced.
2. Flexibility: They allow for easy expansion and modification without extensive rewiring, making them suitable for evolving buildings or facilities.
3. Remote Monitoring: They can be set up to alert someone off-site if there’s a problem, which adds an extra layer of security.

DISADVANTAGES:

1. Pricey: Addressable systems are typically more expensive upfront compared to conventional systems due to their advanced features and technology.
2. Complexity: They require more sophisticated installation, programming, and maintenance, which may necessitate specialized training or professional assistance.
3. Reliability: Sometimes if one thing goes wrong, it can mess up the whole system, which isn’t ideal for keeping everyone safe.

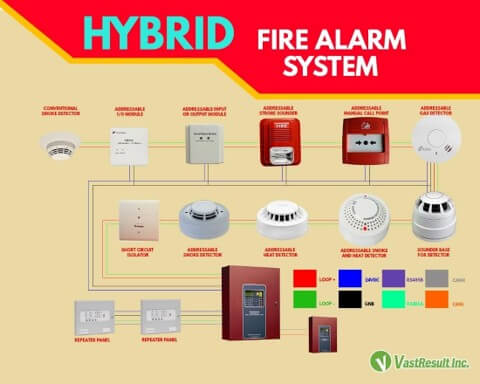

Hybrid Fire Alarm System

Hybrid fire alarm systems bring together the functionalities of both addressable and conventional systems. Typically, these systems integrate the hardwired zones from traditional setups and supplement them with addressable loops, all connected back to the control panel.

Hybrid fire alarm systems are often preferred for retrofitting existing facilities or expanding structures.

ADVANTAGES:

1. Flexible: Hybrid systems mix the best features of both basic and advanced fire alarm setups, giving you more options to customize your safety plan.
2. Easy upgrades: They’re great for updating older systems because they can work with both simple and high-tech parts.
3. Scalability: Hybrid systems allow for gradual expansion and modification, making them adaptable to changing building requirements.

DISADVANTAGES:

1. More complicated: Integrating different types of systems can increase the complexity of installation and maintenance, requiring specialized knowledge and expertise.
2. Costly: They bend different technologies; hybrid systems can be more expensive to set up initially.
3. Compatibility Issues: Ensuring compatibility between different system components and protocols can be challenging and may lead to compatibility issues if not properly addressed.

In summary, fire alarms are essential for everyone’s safety in an emergency. To effectively protect against them, one must understand their types. While conventional systems are simple to operate and reasonably priced, they may occasionally cause false alarms. Although they cost more, addressable systems provide accurate location detection. Systems that combine the best aspects of both offer scalability and flexibility. However, suitable installation and maintenance are essential for any system to function dependably. Individuals and organizations can effectively protect lives and property by making educated decisions based on understanding each type’s advantages and disadvantages.
